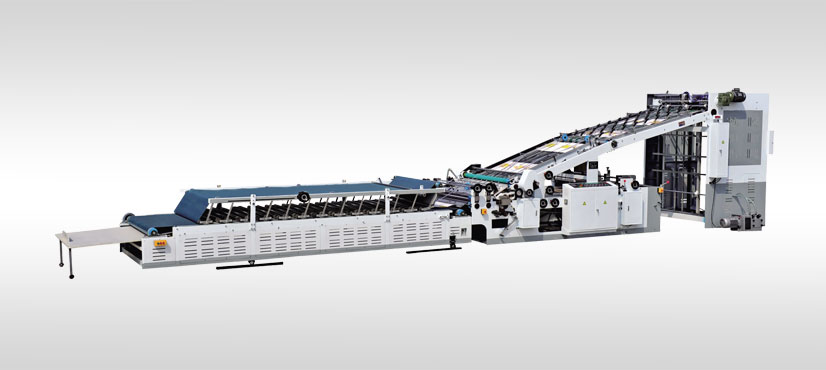

STMT Automatic Flute Laminator

Performance of the machine

●STMT Series Automatic Flute Laminator adopts chain pusher and back registration system together with spring blade side lay and vacuum sucking conveying system which makes this series of machine fits for a larger range of paper, high precision while remaining the features of easy operation and maintenance.
●The core designed rubber roller together with knurled steel roller enhances the evenness of gluing, strength of stickiness, as well as lowering the production cost.
●Balance-tested rollers, tight assembling technique, plus tooth belt driving mechanic system makes the machine runs at low noise with high precision.
●The machine adopts automatic glue supply，recyclable glue circulating system and auto-central oil supply system.
●Self-developed high-strength feeder compliant with high configuration electric system makes the machine run at low malfunction and stable. The electric parts used are all world wide available brand or well-known Chinese brand.
●All material bought from outside are inspected according to ISO-9001 standard and the key parts such as the harmonic gear and bearings are imported ones.
●The bottom sheet for this machine can be A, B, C, E, F flute,3 or 5 ply corrugated sheet as well as cardboard not less than 250gsm. The range for top paper can be 200-800 GSM sheet or 3 ply laminated board. It has top paper advance or alignment function.

Specifications
